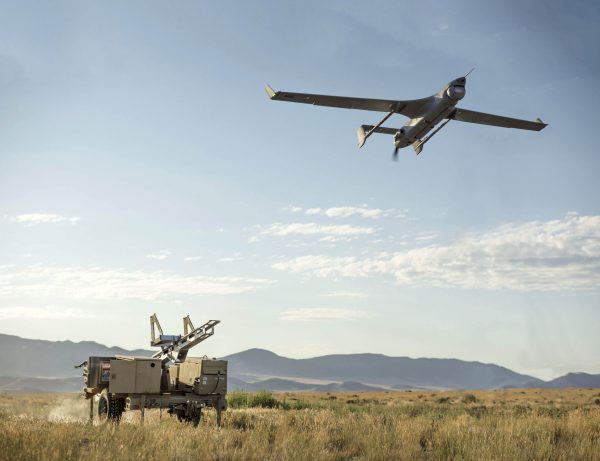

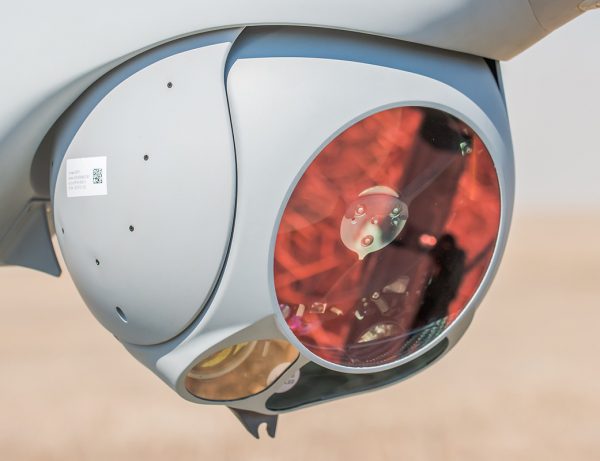

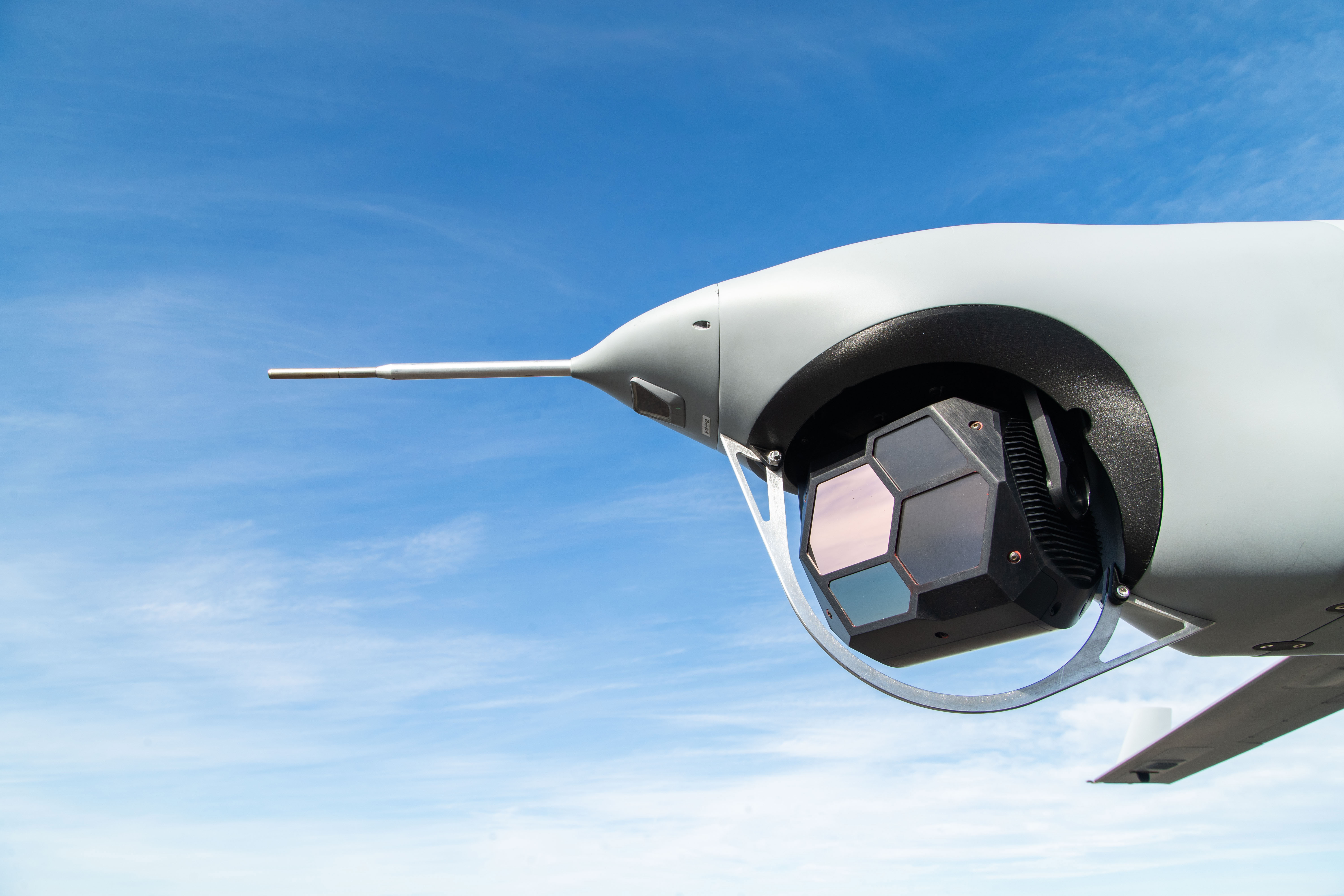

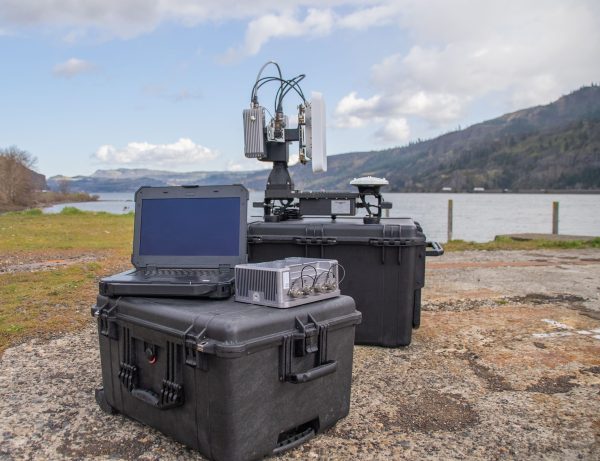

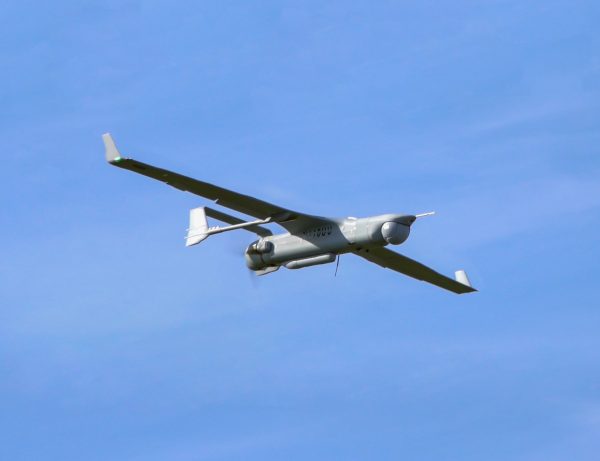

Integrator Integrator One aircraft, infinite possibilities The Integrator is the most versatile UAS in its class, with a modular design to fit every mission. Endless configuration options include no-sacrifice VTOL and extended-range SATCOM capabilities. Group 4/5 Capability Fly multi-int, multi-domain missions that challenge Group 4/5 asset capabilities at a fraction of the acquisition and operation costs with up to 27.5-hour endurance, up to 2000 nmi range, and up to 50lb of payloads across 10 bays. Small Footprint Available with traditional rail launcher/Skyhook LRE and FLARES Vertical Take-off and Landing kit, which requires minimal deck space, can launch in high seas and gusty winds, and requires zero aircraft modifications. Resilient Autonomy Next-gen resilience features include visual-based navigation, autonomous RF switching, weatherization and more, ensuring mission success even in contested, denied, or degraded environments. CONTACT OUR TEAM DOWNLOAD INTEGRATOR PRODUCT CARD DOWNLOAD FLARES VTOL PRODUCT CARD Integrator Specifications Size and Weight Length: 8.2 ft / 2.5m Wingspan: 16 ft / 4.9 m Max takeoff weight: 175 lb / 79 kg Max payload weight: 50 lb / 23 kg Performance Endurance: up to 27.5 hours Ceiling: 19,500 ft / 5,944 m Max horizontal speed: 90+ knots / 46 m/s Engine: EFI using JP-5/JP-8 fuel Payload Integration Onboard power: 500 W for payloads Onboard connectivity: Ethernet Rapid integration of other customer-specific payloads available SATCOM C2 Options Proliferated Low-Earth Orbit Constellations Geosynchronous Orbit Satellite Control Sensor Options AC14 EO telescope (high-zoom day FMV) Hyper-Spectral Optical Radar Dual Imager (MWIR/EO – day & night FMV) PT-6 AI-assisted maritime surface search NSP-5 SAR/MTI/CCD multi-int tactical radar WAMI Wide-area motion imagery for day (Redkite) and night (Blackkite) CM234: Multi-Spectral, EO & Targeting EOIR-5/Alticam 14 Laser designator/pointer/rangefinder PICOSAR: Synthetic Aperture Radar / GMTI MRaISR Synthetic Aperture Radar HiPointer: Solid-State Radar Detect and Advise Alternative Navigation (Alt-Nav) including Visual-Based Navigation (VBN) Kinetics SIGINT, EW, comms relay, and more FLARES VTOL Kit Specifications Weight Max Integrator weight 175 lb (79kg) Temperature Range -20º to +45º C Wind Range 0-30 knots 10 knot gusts Deck Motion +/- 10 degrees roll +/- 5 degrees pitch Resilience Features Encrypted GPS Jam-resistant datalinks Navigation solutions for GNSS-contested environments Weatherization for extreme conditions Full Mission Set Packout 463L pallet: 108 x 88 x 62 in(2.74 x 2.24 x 1.57 m) How does Integrator with VTOL work? LAUNCH FLARES, mated with Integrator, climbs vertically to altitude (500′ AGL), dashes into the wind, and releases Integrator into fixed-wing flight. FLARES returns to land/ship via GPS In case of an aborted launch, FLARES returns and lands vertically with Integrator still attached. RECOVERY FLARES takes off vertically tethered, hosting capture rope into the air (~300′). Integrator catches on vertical line via wing hook (<5 min) FLARES descends as the capture rope is wheeled onto the winch in MARS (Mast Augmented Recovery System) and Integrator settles onto the top of the mast. Unloaded FLARES lands on deck. Resilient in the Harshest Environments Integrator UAS offers next-gen survivability that’s critical to today’s (and tomorrow’s) battlespace. This includes autonomous navigation, GNSS/GPS jamming resilience, visual-based navigation, autonomous RF-switching, weather avoidance, and automated airspace safety features (including DAA) to ensure mission success even in contested, denied, or degraded environments. Game-Changing Range, Endurance, and Capacity Integrator offers up to 27.5 hours of endurance and 2,000 nmi range. Range and endurance enable persistent detection, classification, tracking, and targeting. This range/endurance paired with Integrator’s large payload capacity enables long-transit, long-dwell ISR+T and multi-intelligence missions normally reserved for larger, more expensive assets. Flexible Operations From Front Lines or Rear Positions With Integrator’s endurance, range, and flexible launch/recovery options, you can operate from just about anywhere. FLARES VTOL launch kit enables truly expeditionary ops, with a small packout that can be set up and launched in 30 mins with 3 operators. Traditional LRE (rail launcher and Skyhook) offer runway-independent operations from forward operating bases or other more established positions. The choice is yours – with no aircraft modifications required for either option. Ultimate VTOL Portability and Self-Sufficiency FLARES VTOL Kit enables rapid repositioning and operation in tight spaces on land or ship. It is easily transportable downrange for island-hopping, ship-to-shore, and other point-to-point operations. Optimized for Challenging Shipboard Operation Integrator is proven in challenging maritime environments around the globe. FLARES VTOL Kit is environmentally hardened and built to operate in heavy seas and high winds, with limited launch and stowage spaces in mind. Launches from small vessel helicopter decks in high pitch and roll environments. Truly Interoperable with Common Ground Control Station Insitu’s small, modular, and expandable cGCS with multiple configurations minimizes footprint and maximizes compatibility. Ideal for vehicle-mounted, land-based, or shipboard operations, cGCS works with SATCOM and line-of-sight control and also controls non-Insitu UxV. Trusted Performance Integrator has been truly battle-tested and deployed around the globe, flying in the harshest environments for a variety of US and international partners. Interoperability Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces. Ready to learn more? CONTACT OUR TEAM Related Systems Operate Integrator with these configurable payloads. Common Ground Control Station (cGCS) Common Ground Control System is small, modular, expeditionary, and offers true C2 on-the-move. Learn More INEXA Control Command and control multiple unmanned aircraft from a single workstation Learn More Alticam 14 Multi-Imager, Multi-Feed turret with MWIR, SWIR and EO Learn More NSP-5 Multi-INT, all-weather ISR capabilities normally found on larger platforms Learn More PT-6 Search, interrogate, and prosecute from one long endurance platform via state-of-the-art, automated wide-area search with high-powered zoom optics, across multiple spectral bands. Learn More The Warden HSOR Autonomous, real-time, wide-area, optical & hyperspectral search sensor optimized for Integrator UAS Learn More In the News Related Stories Insitu Announces Kinetic Capability for the Integrator Uncrewed Aircraft System (UAS) Insitu, A Boeing Company, announced a munitions program for its Integrator UAS, which adds a highly sought-after strike capability to the platform’s unmatched payload portfolio and class-leading 24-hour flight endurance. Read More » Insitu’s keys for success in serving NATO Europe Insitu Incorporated, a Boeing company, reached a milestone this year: 30 years of unmanned aircraft innovation excellence – and nearly 20 years of supporting NATO, helping it to project NATO power on land and at sea from the air. ESD’s Curtis Hand spoke with Insitu CEO Diane Rose about what is next for the company in terms of current and future operational theatres, warfare’s evolution, and new industrial partnerships and strategic alliances – all to strengthen NATO and its affiliates. Read More » Belgian Defence: The Integrator: Sustained Aerial Reconnaissance as Operational Added Value The strength of the Integrator lies not only in the platform itself, but in the way it generates, processes, and disseminates information within an operational context. Read More »
