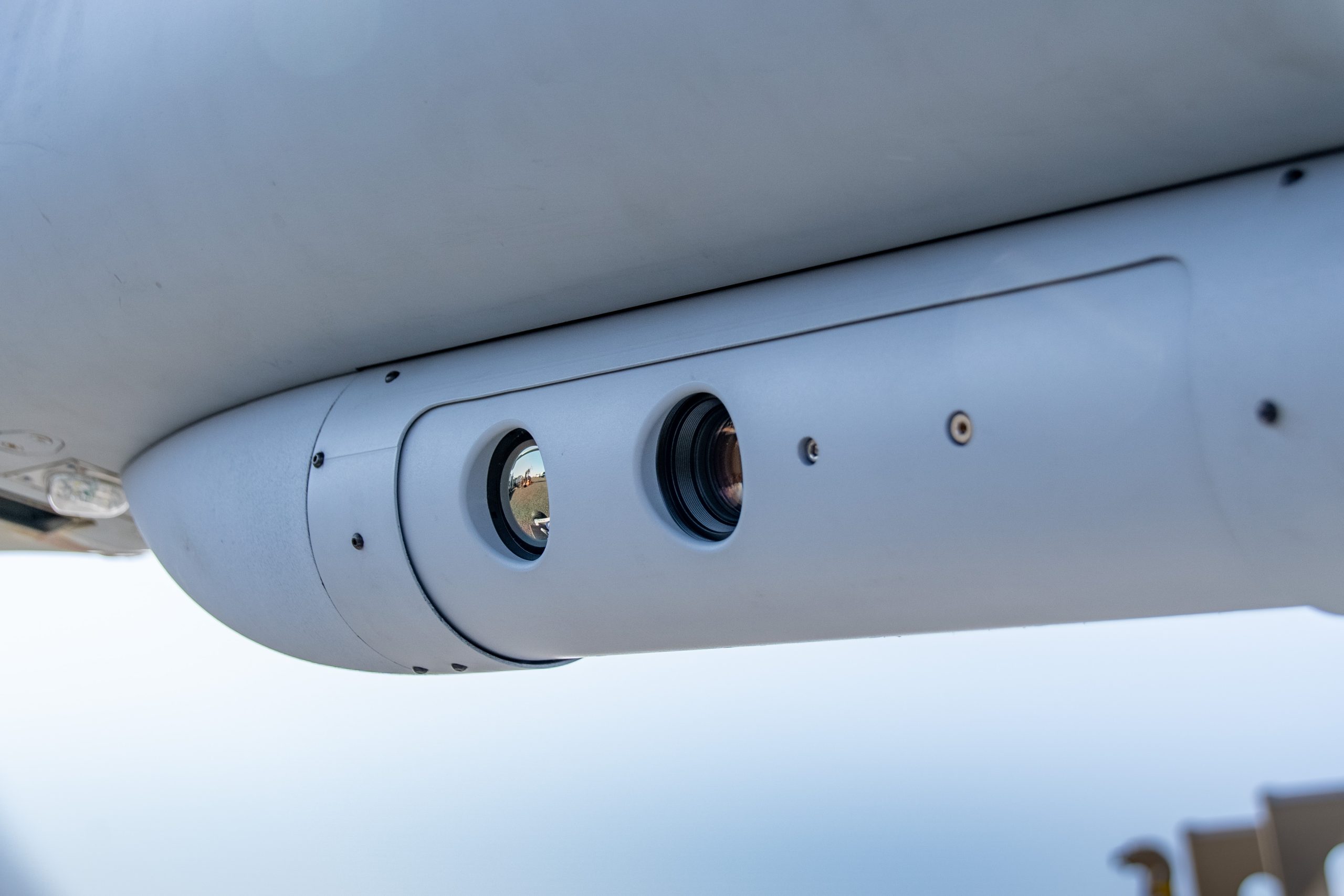

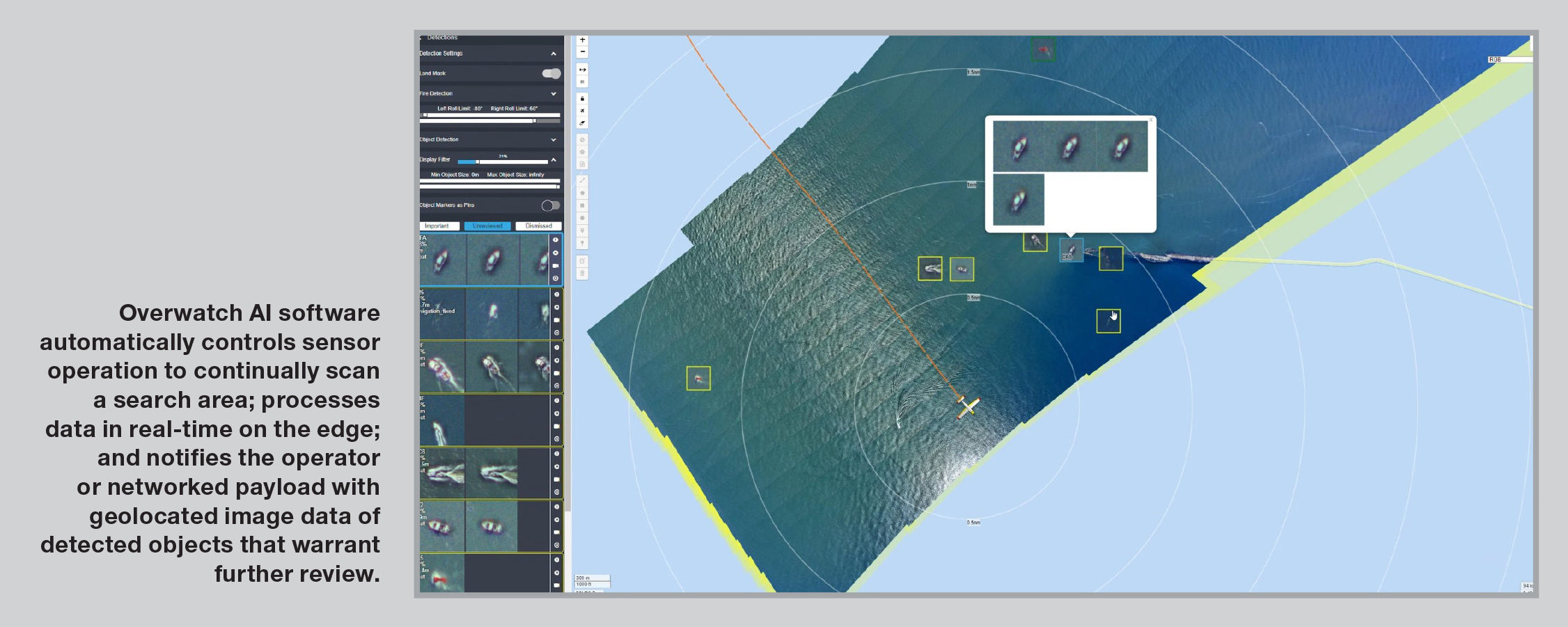

PT-6 Wide Area Search PT-6 Wide Area Search Automated Maritime Wide-Area Search for Integrator AI-assisted wide-area search with high-powered zoom optics and multiple spectral bands.Search, interrogate, and prosecute from one long endurance platform. Automate Your Search Scans wide areas for objects of interest, processes imagery on the edge, and provides real-time information to operators, networked payloads, or mission management systems. Program Your Missions Designate automated search areas and detection thresholds based on mission parameters to optimize sensor and software operation. Search from Day to Night Equipped with HD RGB and HD LWIR sensors. Nighttime heat/object detections, particularly in maritime environments, are aided by the contrast of thermal signatures against a uniform body of water. Get the full specs and details. DOWNLOAD PRODUCT CARD Specifications Payload Swap Weight: 5.5 lb (2.5 kg) Size: 23.6 in x 3.75 in (95 mm x 600 mm) Power: 42 W Mounting Standard CG bay mounting Onboard Sensors Sensor 1: RGB Color 12.3 MP (4096 x 3000) Rolling shutter Sensor 2: HD LWIR 1.3 MP (1280 x 1024) 8-14 micron Command Control Ethernet User Interface Browser-based, hosted on payload GPS INS Novatel survey-grade GPS Single L1 antenna Stabilization Active roll How it works PT-6 scans wide areas for objects of interest, processes imagery on the edge, and provides real-time information to operators, networked payloads, or mission management systems. Detection Ranges and Coverage Examples of targets and coverage based on size, altitude and speed (assumes 55 kts) Target SizeAltitude (AGL)Detection RangeSearch SwathCoverage Rate (per hour)2 m life raft1,000 ft (305m)2 NM (3.7km)4 NM (7km)220 NM2 (755 km2)19 m vessel5,000 ft (1,500m)10 NM (18.5km)20 NM (37km)1,100 NM2 (3,773 km2)50+ m vessel5,000 ft (1,500m)17 NM (31.5km)34 NM (63km)1,870 NM2 (6,414 km2) Let AI Do the Heavy Lifting PT-6 automates the labor-intensive role of searching for small targets of interest in large areas, often in challenging conditions. Overwatch AI software automatically controls sensor operation to continually scan a search area; processes data in real-time on the edge; and notifies the operator or networked payload with geolocated image data of detected objects that warrant further review. Expand Your Field of View The sensor automatically scans in a step-stare pattern that sweeps across the flight track to provide a significantly increased search coverage area. Go Day to Night with Multi-spectral Sensors RGB and Long Wave Infrared (LWIR) allow you to search from day to night, and easily pick out warm heat signatures against a cool, uniform body of water. Do it All with Multi-Mission Capabilities PT-6 enables a wide variety of mission capabilities, from maritime search and ISR to land-based tactical intelligence, inspection and mapping, custom object detection, change detection, and more. Stay On Target Longer with Unmatched Endurance Integrator is designed for easy integration of multi-INT payloads, offers 24+ hours of endurance, and carries 40 pounds of Insitu best-in-class, modular, field-swappable payloads across six bays, with plenty of onboard power. PT-6 is developed and produced by Overwatch Imaging and integrated and tested with Integrator in collaboration between Insitu and Overwatch Imaging Ready to learn more? CONTACT OUR TEAM Related Systems RQ-21A Increasing expeditionary capabilities with more payload options Learn More Common Ground Control Station (cGCS) Common Ground Control System is small, modular, expeditionary, and offers true C2 on-the-move. Learn More INEXA Control Command and control multiple unmanned aircraft from a single workstation Learn More Read More Recent News UBIQ Aerospace and Boeing Insitu Establish Visionary Partnership to Redefine Cold Climate Aircraft Technology UBIQ Aerospace, a pioneering leader in cold weather and ice protection technologies, is excited to announce a groundbreaking collaboration with Boeing/Insitu, a renowned uncrewed aircraft systems (UAS) provider within The Boeing Company. Read More » Insitu and Innovaero to develop unmanned aerial attack systems Drone manufacturer Insitu Pacific (IPL) and aeronautical manufacturer Innovaero are to collaborate in the development of a long-range strike capability using uncrewed aircraft systems (UAS). Read More » Insitu Announces Kinetic Capability for the Integrator Uncrewed Aircraft System (UAS) Insitu, A Boeing Company, announced a munitions program for its Integrator UAS, which adds a highly sought-after strike capability to the platform’s unmatched payload portfolio and class-leading 24-hour flight endurance. Read More »
