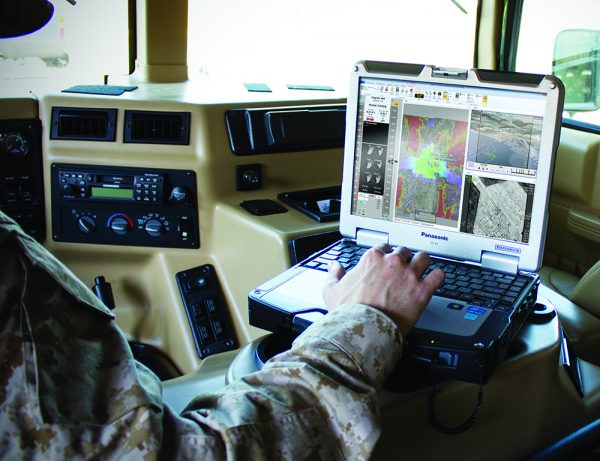

NSP-3 Tactical Multi-INT Radar for ScanEagle NSP-3 Tactical Multi-INT Radar for ScanEagle Delivering real-time, actionable intelligencein day, night and all-weather conditions Enabling multi-INT, all-weather ISR capabilities normally found on larger, more expensive platforms. SAR/MTI/CCD Radar Data Advanced, low-SWaP, multi-mode radar in a protected weatherized pod. Coherent Change Detection CCD helps discover surface disturbances more effectively than EO or IR alone. Wide-area search modes Ideal for maritime patrol, force protection and counter-trafficking missions. Get the full specs and details. DOWNLOAD PRODUCT CARD Specifications Operational Ranges Operating Frequency: Ku band Operating Altitude: Mode dependent up to 6,000 ft AGL SAR imaging range: 14.2 km (at 1m resolution) MTI (vehicle): 6 km max. range; max. continuous coverage 16 km2 Standard Data Formats KML, Complex NITF JPG, PNG, BMP STANAG 4607 Detects, STANAG 4676 Tracks Variants NSP-3(X): SAR, CCD, GMTI/MMTI (advanced), DMTI NSP-3(S): SAR, GMTI/MMTI (standard) X variant available to approved customers Operating Software Uses “Lisa 3D” intuitive software for Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) Pre-mission flight geometry based on data collection plan Operational capability to program the radar, dynamically change plans and modes, and perform real-time analysis Post-mission analysis with export to standard formats and data forensics All-weather, high-quality, multi-mode radar • Synthetic Aperture Radar (SAR) • Moving Target Indicator (MTI) • Coherent Change Detection (CCD) Multiple radar search modes • Stripmap – Monitors a swath of ground parallel to the direction of flight. • Spot light – Monitors a selected area of ground while UAS flies past or around it. • Wide Area – Monitors the large area within the radar’s FoV for potential targets of interest. Wide-area search modes • Ground Moving Target Indicator (GMTI) • Dismount Moving Target Indicator (DMTI) • Maritime Moving Target Indicator (MMTI) • High Value Target (HVT) mode Developed and produced by IMSAR. Integrated and tested in collaboration between Insitu and IMSAR. Ready to learn more? CONTACT OUR TEAM Related Systems NSP-3 works in conjunction with these Insitu systems. ScanEagle VTOL The UAS that invented the agile ISR category, now with VTOL Learn More INEXA Control Command and control multiple unmanned aircraft from a single workstation Learn More In the News Related Stories Insitu anticipates adding payloads to ScanEagle and Integrator, finds FLARES customer Unmanned aerial vehicle (UAV) manufacturer Insitu intends to introduce a suite of new capabilities over the next five years Read More » ScanEagle Deployed on The Frigate Canarias Assists in the Liberation of a Ship Kidnapped by Pirates in Somali Waters ScanEagle assists in the release of the ship ABDULLAH and its 23 crew members. Read More » QE-1 Squadron turns 2 years old The military ceremony took place at the São Pedro da Aldeia Naval Air Base Read More »
