Integrator VTOL

Battle-Tested Endurance, Now With VTOL

The long-endurance Integrator is the most versatile UAS in its class.
With our new VTOL kit, you don’t sacrifice endurance and capability for expeditionary.

Extended Range SatCom variant enables range up to 2,000 nmi point-to-point.

Group 4/5 Capability

Fly multi-int, multi-domain missions that challenge Group 4/5 asset capabilities at a fraction of the acquisition and operation costs with 27.5-hour endurance, 2000 nmi range (with SatCom), and 50lb of payloads across 10 bays

Small Footprint

FLARES Vertical Take-off and Landing kit requires minimal deck space, can launch in high seas and gusty winds, and requires zero aircraft modifications.

Customizable Payloads

Maximize every mission with six payload spaces and up to 50 pounds of cutting-edge sensors. Modularity supports a wide range of missions including electronic warfare, ISR, and comms relay

Get the full specs and details.

DOWNLOAD PRODUCT CARD

FLARES Specifications

Weight

Max Integrator weight 175 lb (79kg)

Temperature Range

-20º to +45º C

Wind Range

0-30 knots
10 knot gusts

Deck Motion

+/- 10 degrees roll
+/- 5 degrees pitch

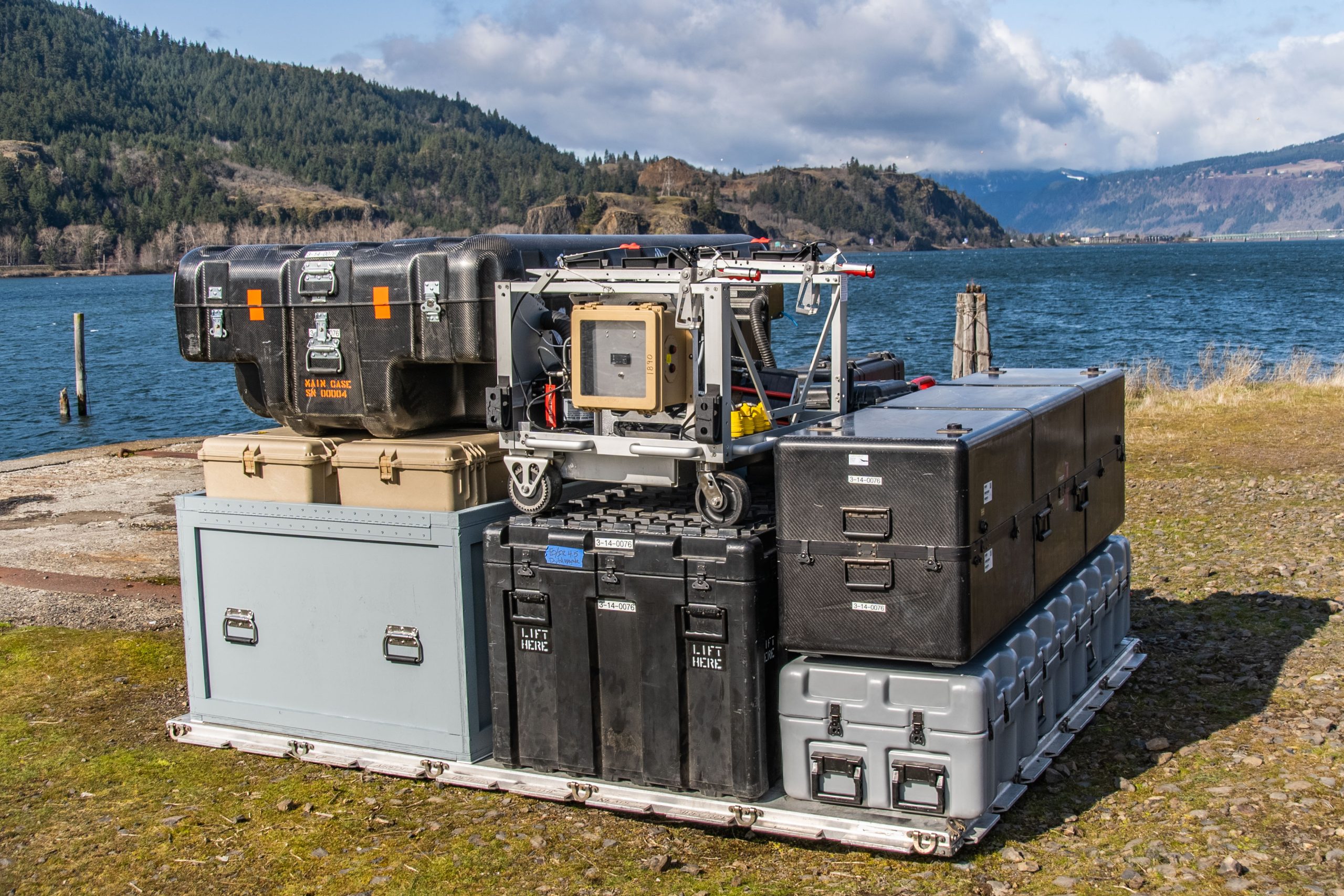

Full Mission Set Packout

463L pallet: 108 x 88 x 62 in
(2.74 x 2.24 x 1.57 m)

Integrator Specifications

Size and Weight

Length: 8.2 ft / 2.5m
Wingspan: 16 ft / 4.9 m
Max takeoff weight: 175 lb / 79 kg
Max payload weight: 50 lb / 23 kg

Sensor Options

AC14 EO telescope (high-zoom day FMV)
Dual Imager (MWIR/EO – day & night FMV)
PT-6 AI-assisted maritime surface search
NSP-5 SAR/MTI/CCD multi-int tactical radar
WAMI Wide-area motion imagery for day (Redkite) and night (Blackkite)
EOIR-5/Alticam 14 Laser designator/pointer/rangefinder
Alternative Navigation (Alt-Nav)
Kinetics
SIGINT, EW, comms relay, and more

Payload Integration

Onboard power: 500 W for payloads
Onboard connectivity: Ethernet
Rapid integration of other customer-specific payloads available

Performance

Endurance: up to 27.5 hours
Ceiling: 19,500 ft / 5,944 m
Max horizontal speed: 90+ knots / 46 m/s
Engine: EFI using JP-5/JP-8 fuel

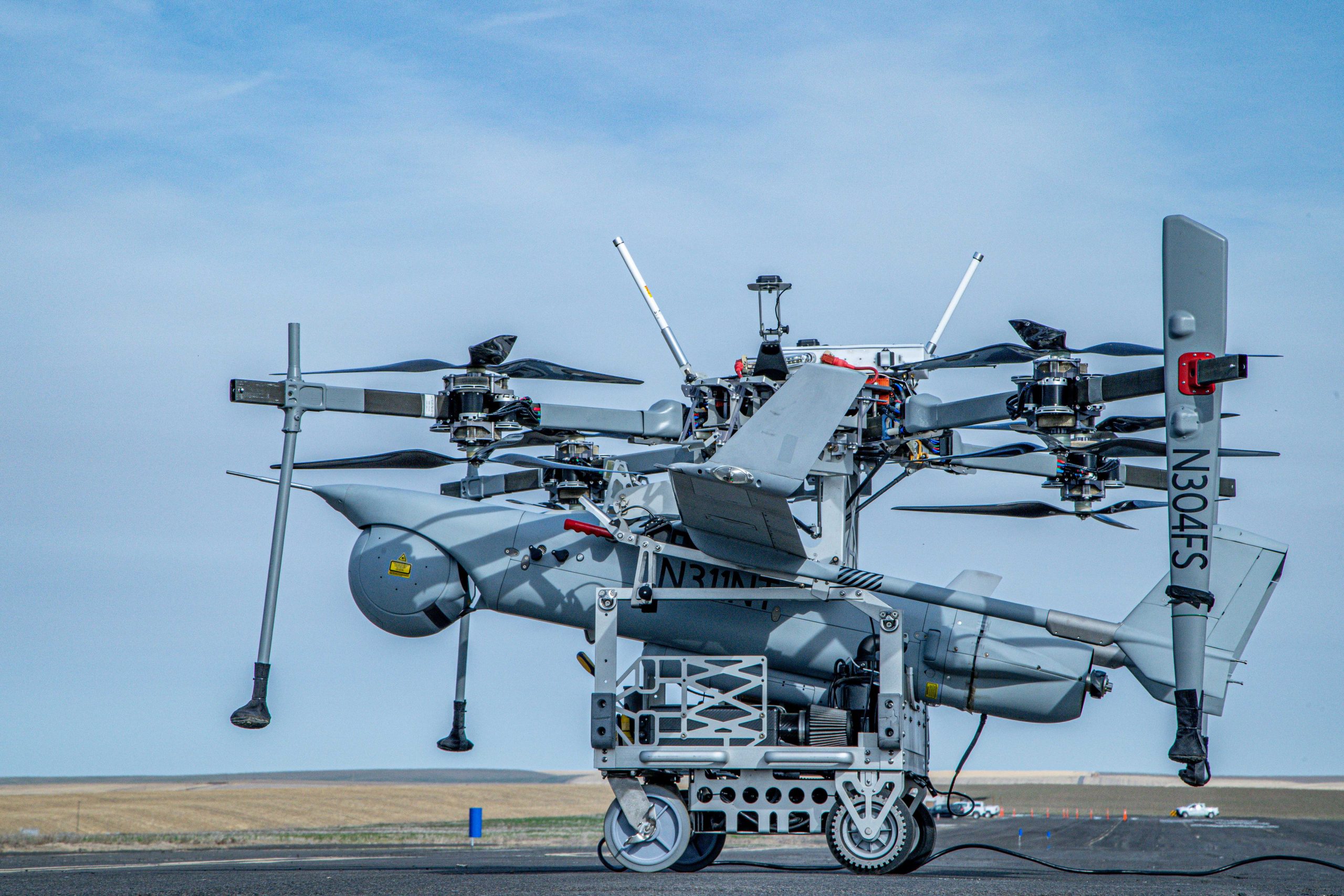

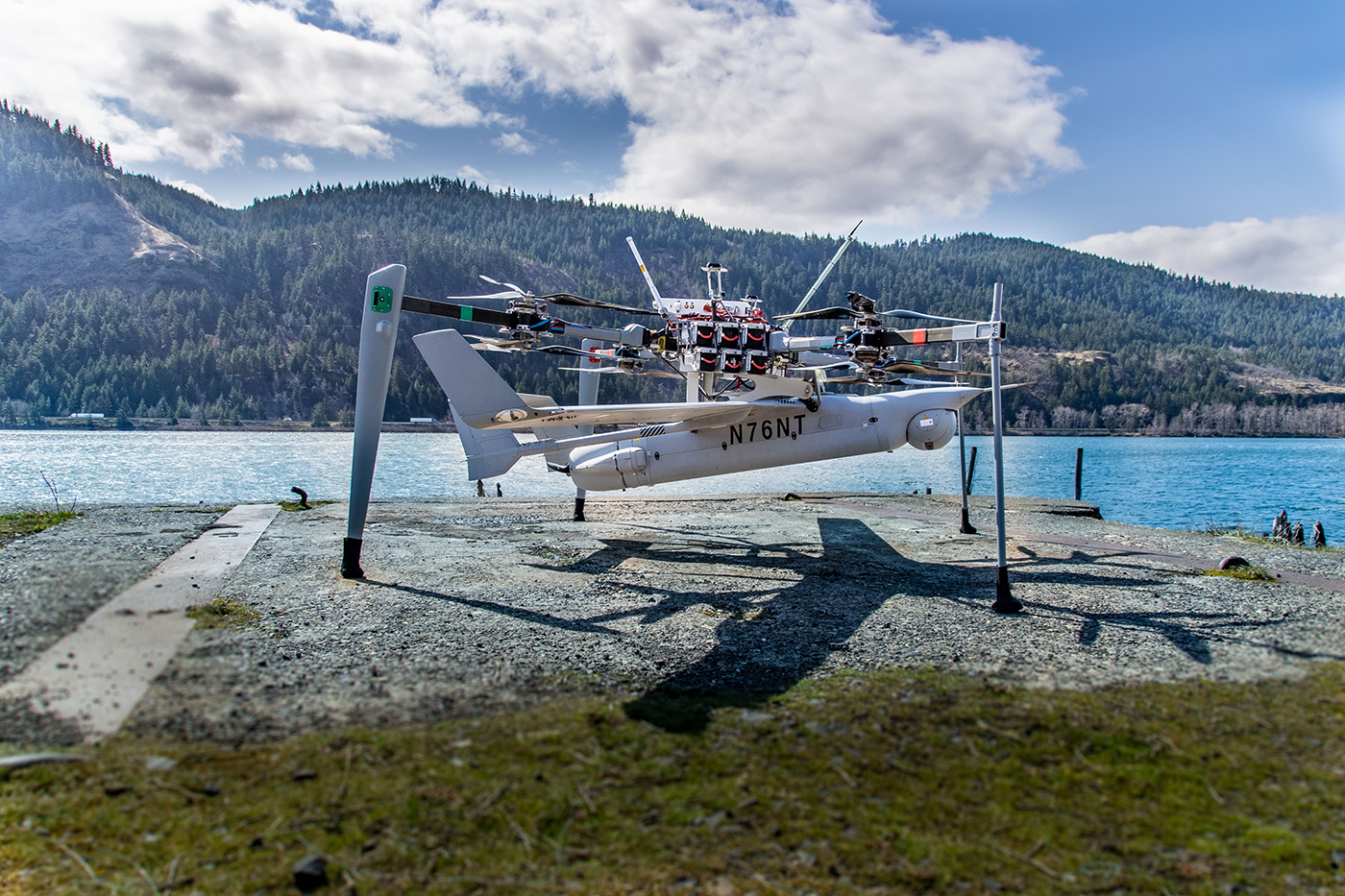

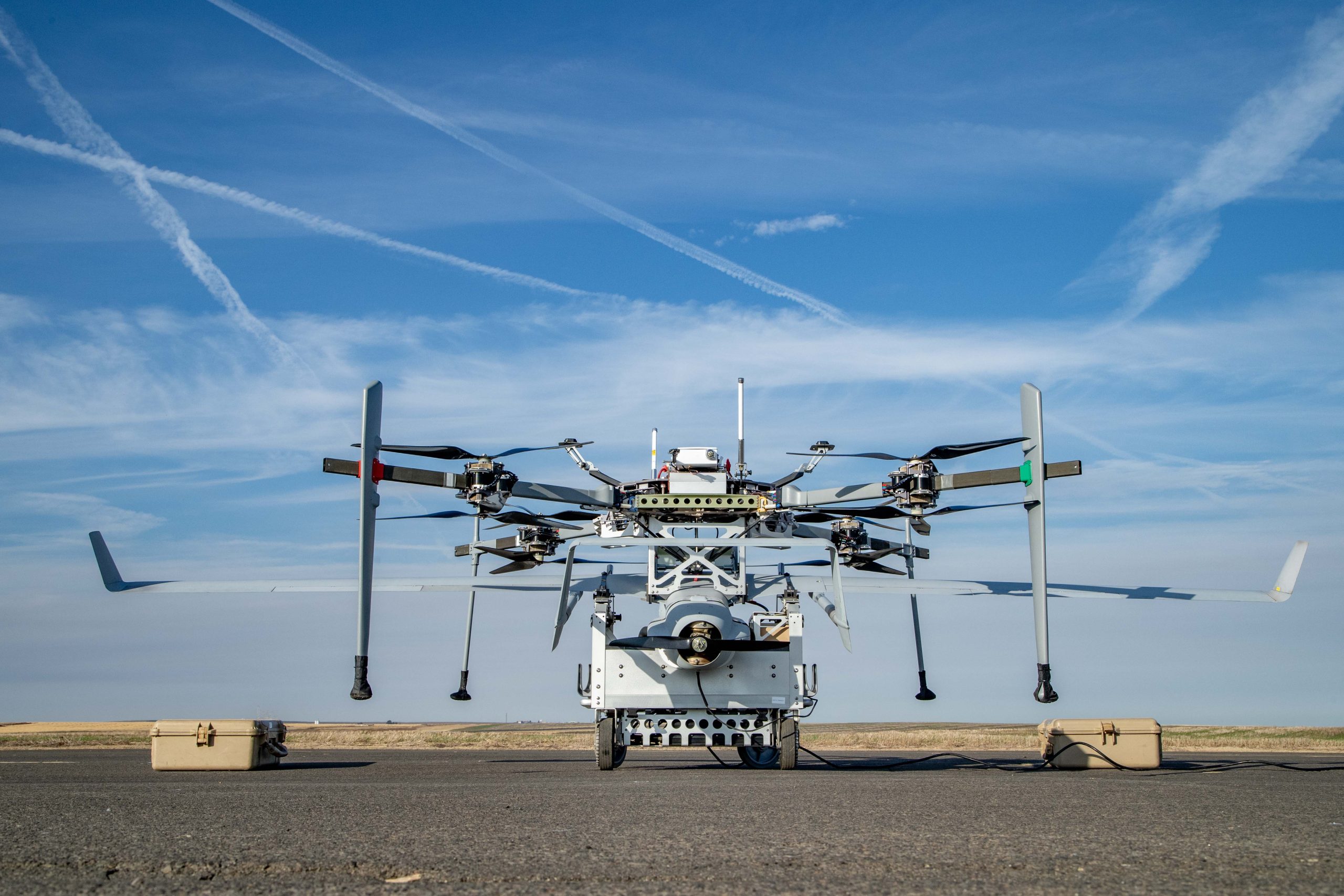

How does Integrator VTOL work?

LAUNCH

FLARES, mated with Integrator, climbs vertically to altitude (500′ AGL), dashes into the wind, and releases Integrator into fixed-wing flight.

FLARES returns to land/ship via GPS
In case of an aborted launch, FLARES returns and lands vertically with Integrator still attached.

RECOVERY

FLARES takes off vertically tethered, hosting capture rope into the air (~300′). Integrator catches on vertical line via wing hook (<5 min)

FLARES descends as the capture rope is wheeled onto the winch in MARS (Mast Augmented Recovery System) and Integrator settles onto the top of the mast.
Unloaded FLARES lands on deck.

Full Range, Endurance, and Capacity

Integrator VTOL offers up to 27.5 hours of endurance and 2,000 nmi range. Range and endurance enable persistent detection, classification, and tracking.

Increased Portability and Self-Sufficiency

Integrator VTOL enables rapid repositioning and operation in tight spaces on land or ship. VTOL kit easily transportable downrange for island-hopping, ship-to-shore, and other point-to-point operations.

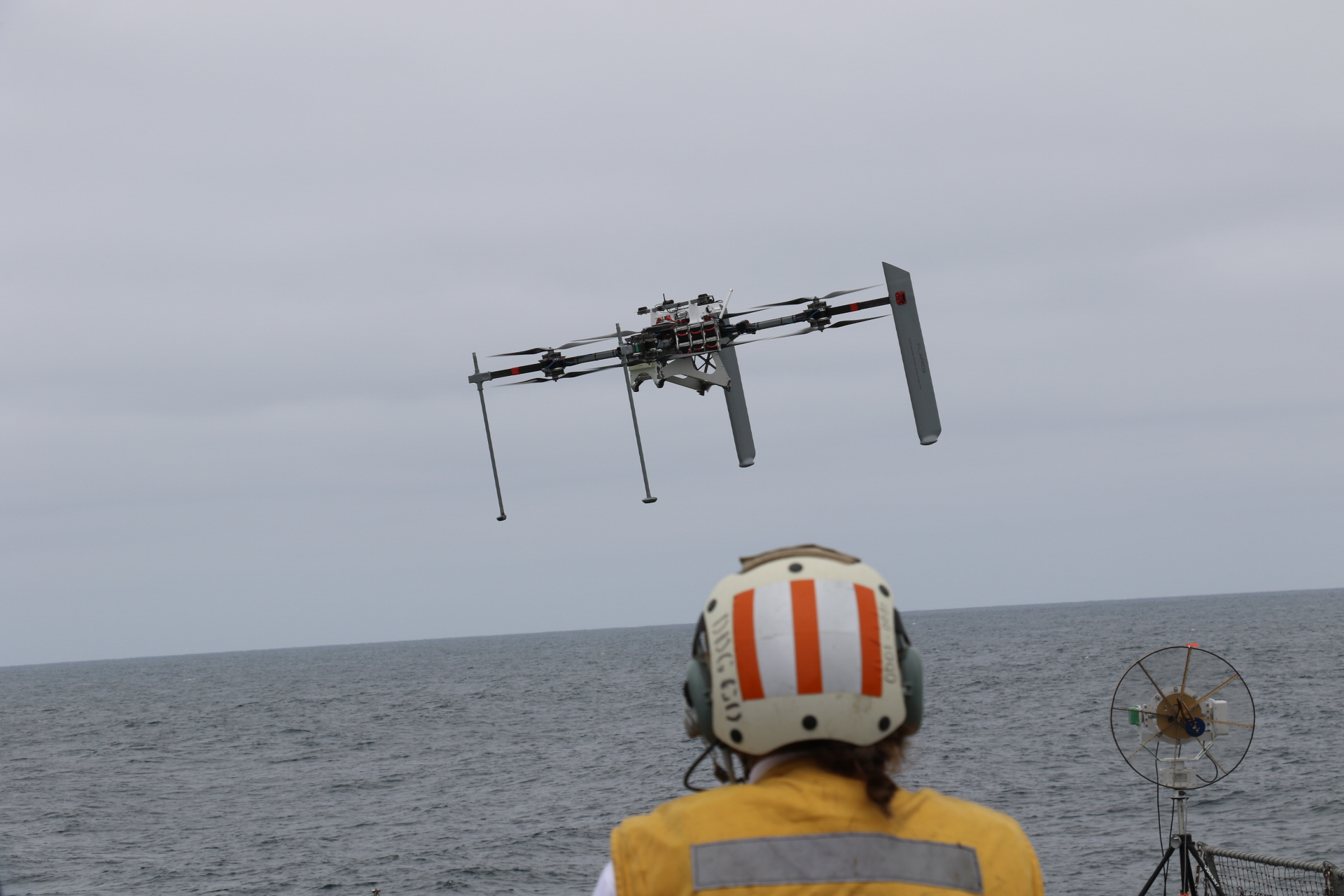

Optimized for Shipboard Operation

FLARES is built to operate in high seas and gusty winds, with limited launch and stowage spaces in mind. Launches from small vessel helicopter decks in high pitch and roll environments.

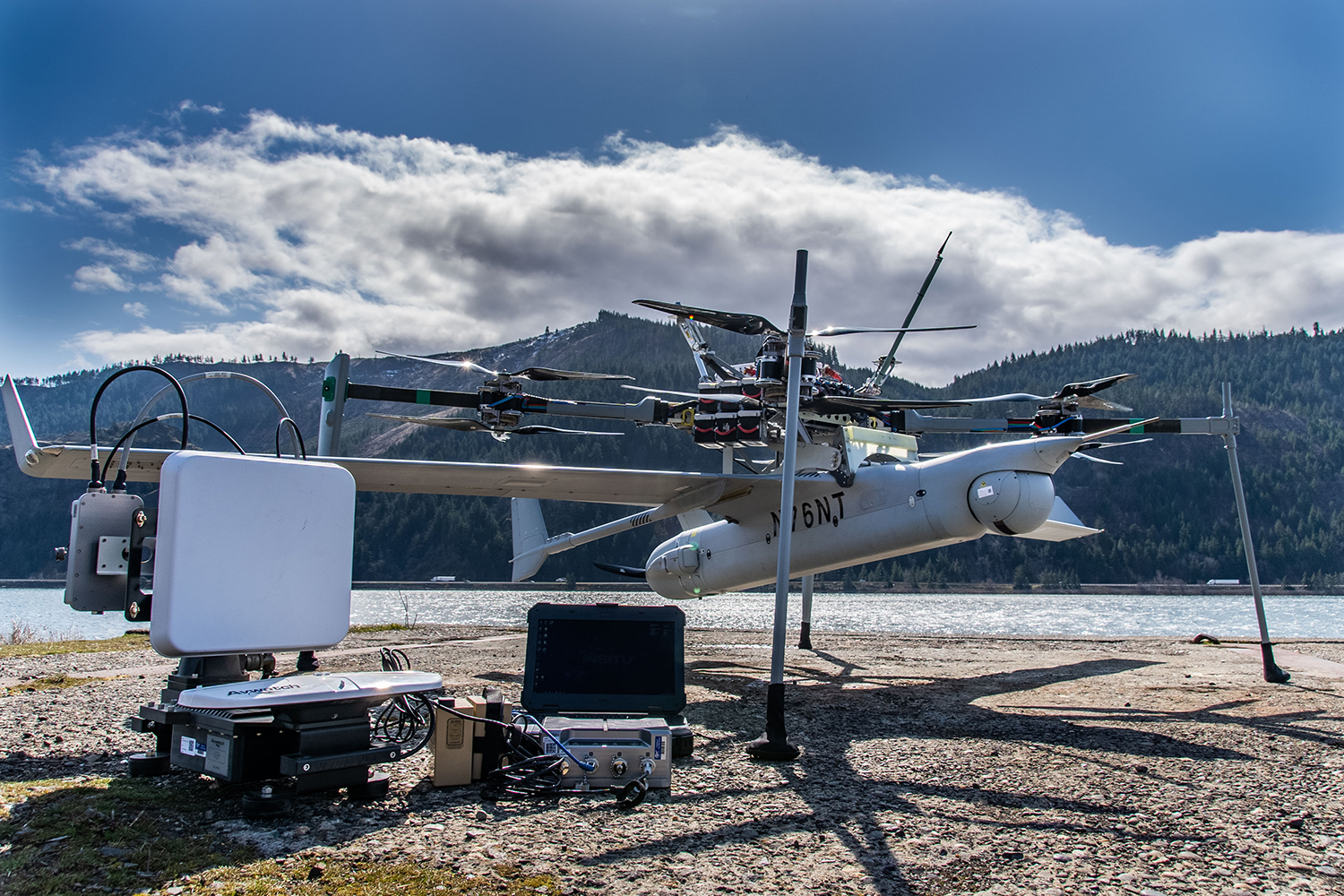

Common Ground Control Station

Small, modular, and expandable GCS with multiple configurations minimizes footprint and maximizes compatibility. Also controls non-Insitu UAV. Extended Range variant offers PLEO, MEO, and GEO SatCom options.

Trusted Performance

Integrator and its variants have been truly battle-tested and deployed around the globe, flying in the harshest environments for a variety of US and international partners.

Interoperability

Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces.

Encrypted Communication

Encrypted command and control data link enables a line-of-sight operating radius beyond 50 nm / 92.6 km, with electromagnetic shielding to support customized communications and radio frequency sensor payloads.
