ScanEagle VTOL

The UAS that invented the agile ISR category,
Now with VTOL

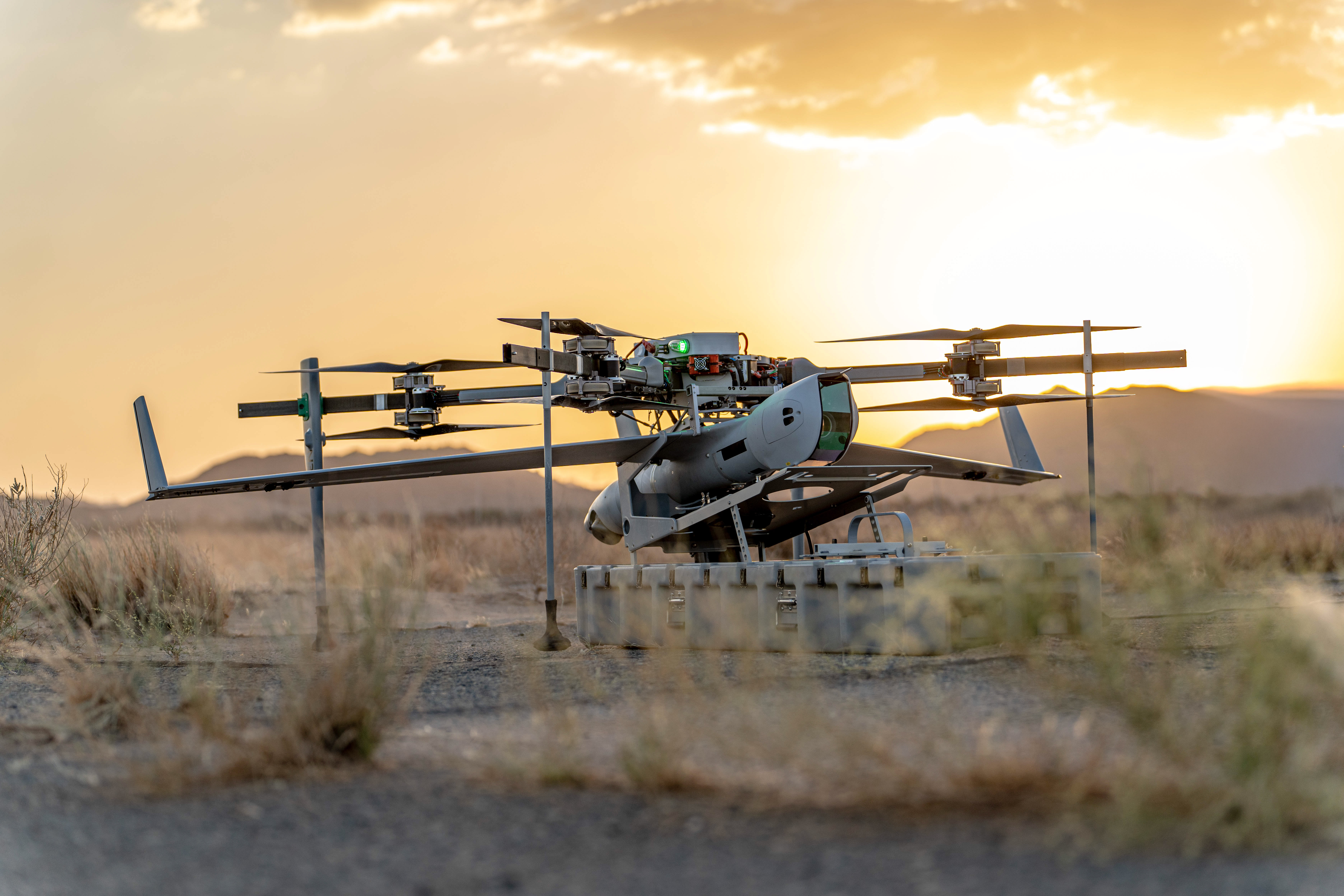

ScanEagle paired with FLARES VTOL brings the smallest possible operational footprint
while preserving maximum endurance and best-in-class, modular, payload capability.

Long-Endurance

ScanEagle’s 18+ hours of endurance carrying 17 lbs of Insitu best-in-class payloads means you’ll never lose sight of what’s most important.

Small Footprint

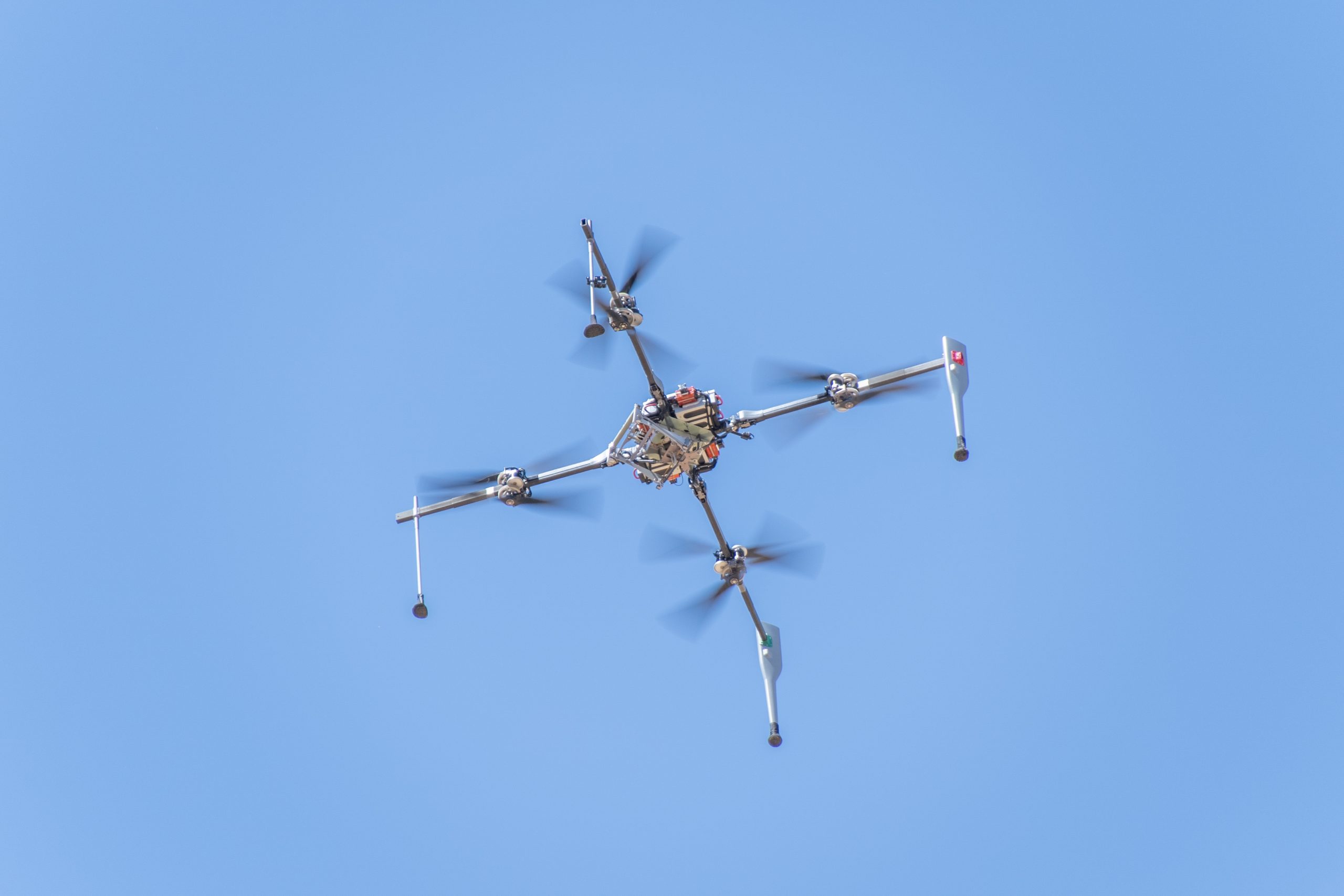

FLARES Vertical Take-off and Landing kit requires minimal deck or land space and requires zero aircraft modifications. Enables rapid repositioning and operation in tight spaces. Transportable via standard pickup truck or cargo van and ready to launch within 30 minutes.

Resilient

ScanEagle has been operating in GPS-contested and denied environments since 2018. Alt-nav and other solutions available.

Get the full specs and details.

DOWNLOAD PRODUCT CARD

FLARES Specifications

Weight

Max ScanEagle weight 62 lb (28 kg)

Temperature Range

-20º to +45º C

Wind Range

0-30 knots
10 knot gusts

Full Mission Set Packout

463L pallet: 108 x 88 x 62 in
(2.74 x 2.24 x 1.57 m)

ScanEagle Specifications

Size and Weight

Max takeoff weight: 62 lb / 28 kg
Max payload weight: 17 lb / 8 kg
Payload power: up to 150 W
Length: 5.6ft / 1.71m
Wingspan: 10.2 ft / 3.1 m

Sensor and Data Options

Electro-optical (EO) camera and telescope
Medium-wave infrared and EO for day-to-night operations
AI-assisted wide-area maritime search
Synthetic Aperture Radar (SAR): MMTI/GMTI, CCD
Laser range finder, laser pointer, and laser designator options
Electronic warfare / SIGINT / comms relay
AIS: Maritime vessel identification
Alternative Navigation (Alt-Nav)
Video Datalink: Analog, digital encrypted
C2 Datalink: Encrypted, unencrypted

Performance

Endurance: 18 hours
Ceiling: 19,500 ft / 5,950 m
Max horizontal speed: 80 knots / 41.2 m/s
Engine: Heavy fuel (JP-5 or JP 8) or C-10 gasoline engine

How does ScanEagle with VTOL work?

LAUNCH

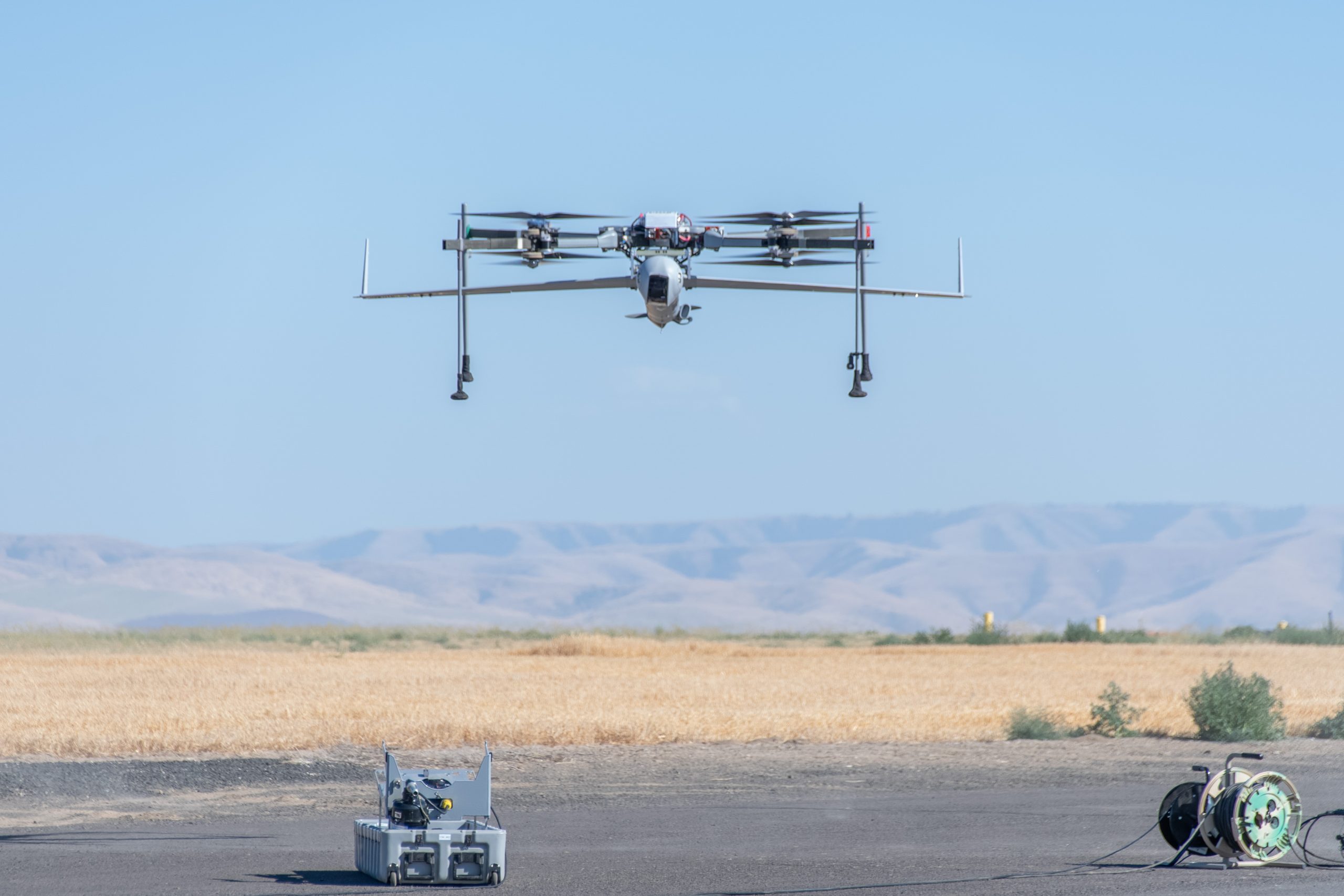

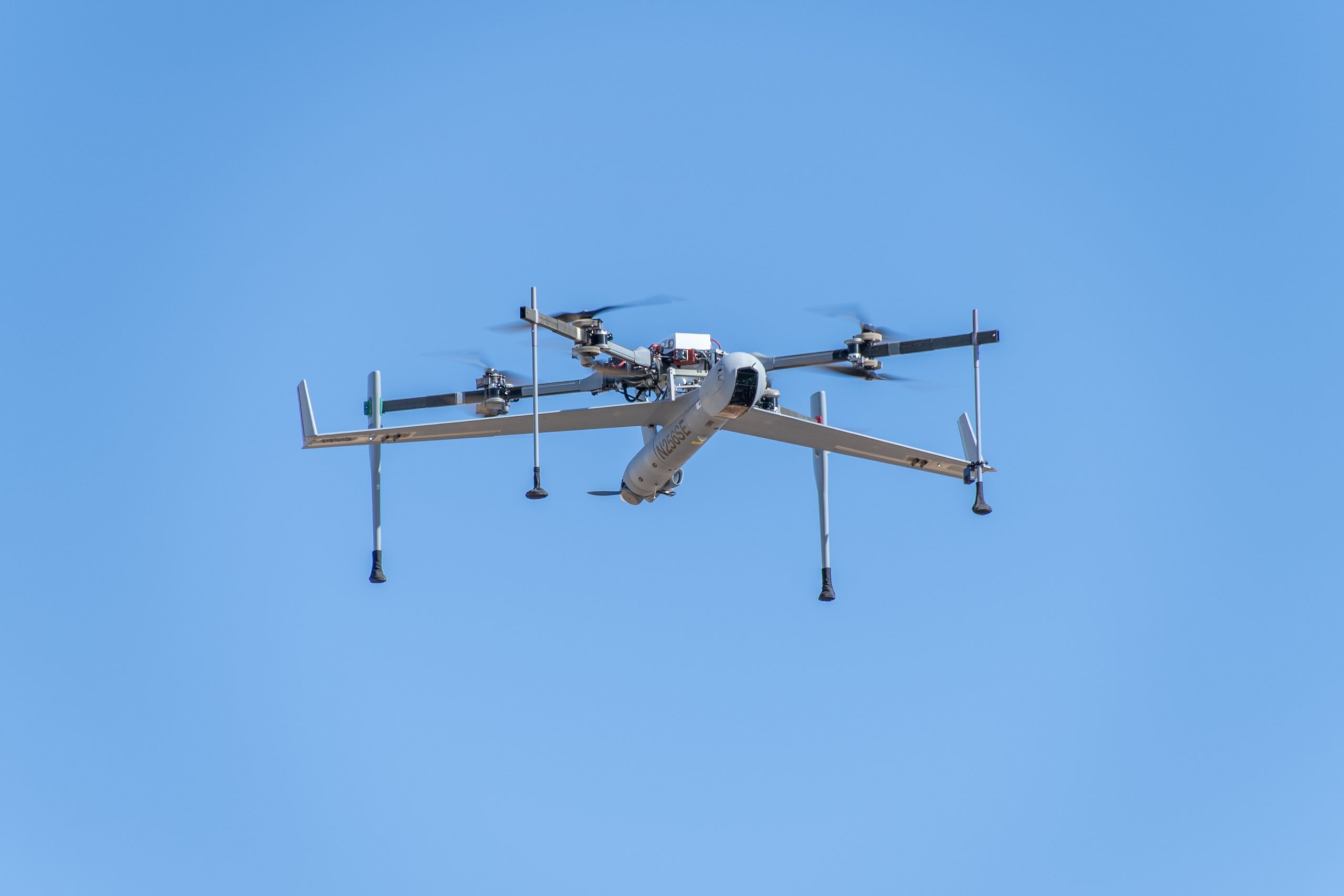

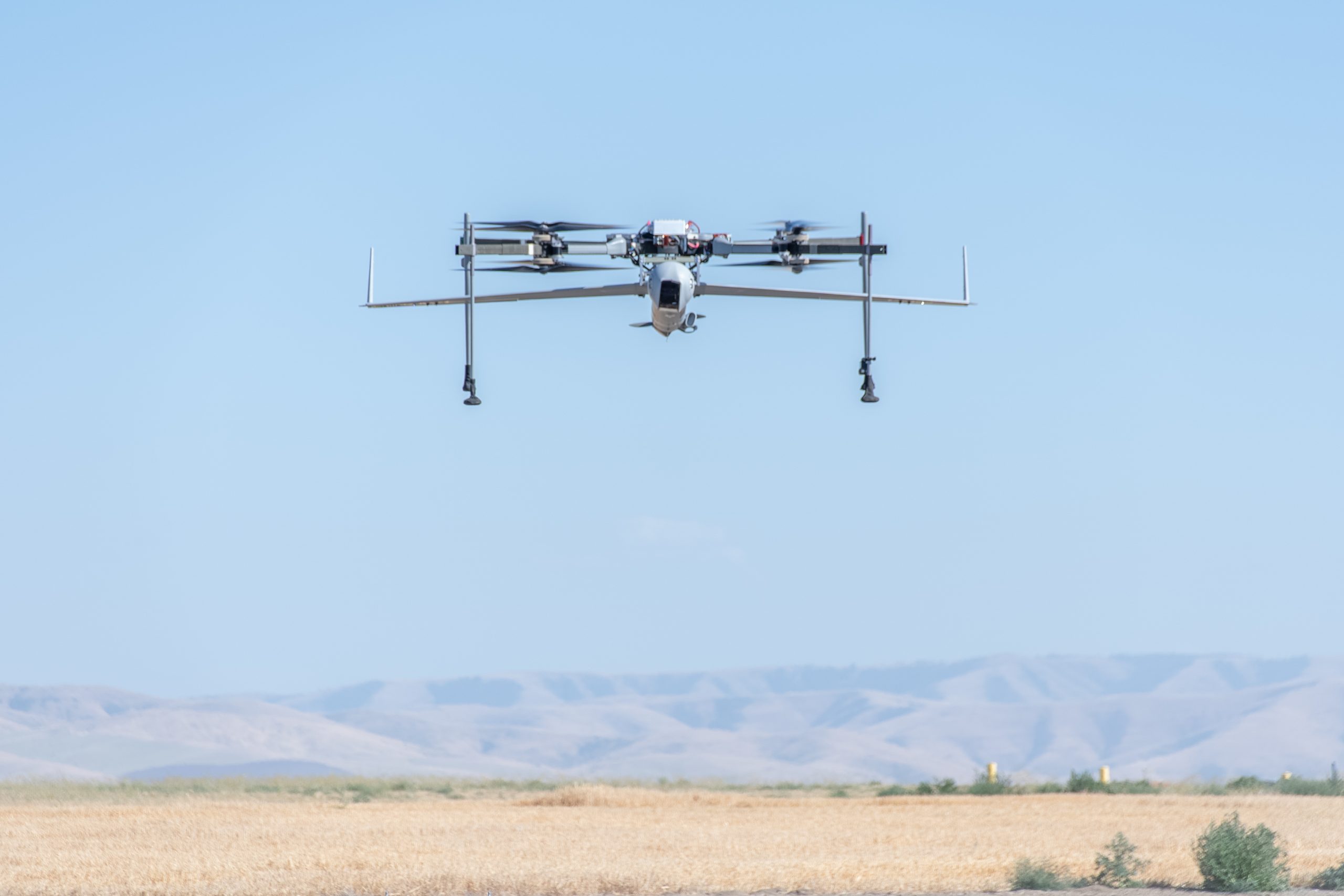

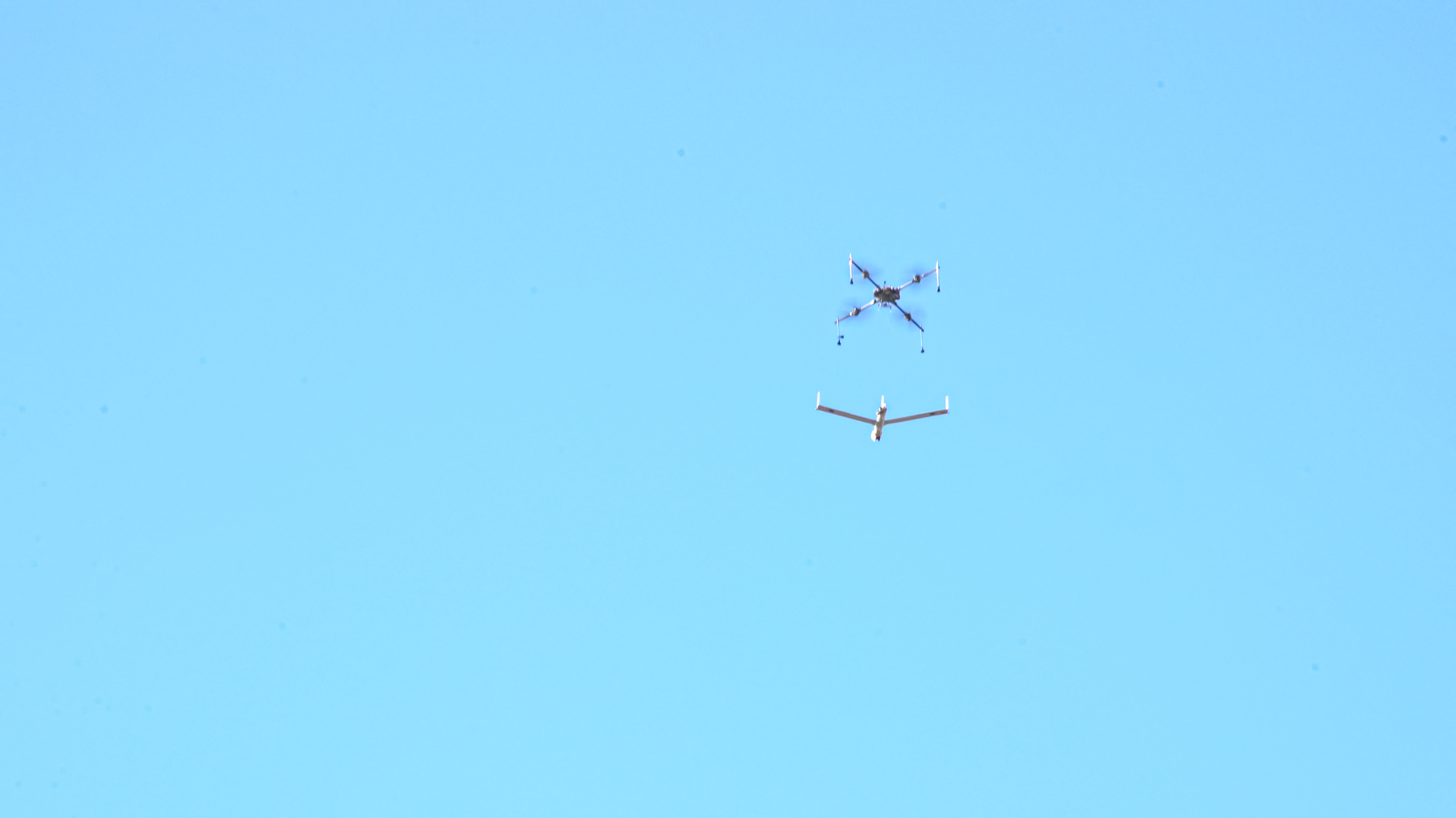

FLARES mated with ScanEagle climbs vertically to altitude (500′ AGL), dashes into the wind, and releases ScanEagle into fixed-wing flight (<5 minutes).

FLARES returns to land/ship launch point
In case of an aborted launch, FLARES returns and lands vertically with ScanEagle still attached.

RECOVERY

FLARES takes off vertically tethered, hosting capture rope into the air (~300′). ScanEagle catches on vertical line via wing hook (<5 min)

FLARES descends as the capture rope is wheeled onto the winch in MARS (Mast Augmented Recovery System) and ScanEagle settles onto the top of the mast.
Unloaded FLARES lands.

Full Range, Endurance, and Capacity

ScanEagle with VTOL offers 18+ hours of endurance carrying 17 lb of Insitu’s best-in-class modular payloads. Range and endurance enable persistent detection, classification, and tracking.

Increased Portability and Self-Sufficiency

ScanEagle with VTOL enables rapid repositioning and operation in tight spaces on land or ship.

Available for Current ScanEagle Customers

FLARES VTOL kit works with existing ScanEagle UAS.

Common Ground Control Station

Small, modular, and expandable GCS with multiple configurations minimizes footprint and maximizes compatibility. Also controls non-Insitu UAV.

Trusted Performance

With over 1.3 million operational hours, ScanEagle has been continuously deployed on land since 2004 and at sea since 2005. ScanEagle is truly battle-tested – deployed around the globe, flying in the harshest environments for a variety of US and international partners.

Interoperability

Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces.

Payload Flexibility

Field-swappable payloads can be rapidly reconfigured to support a wide range of missions—electronic warfare, ISR, comms relay, overwatch and targeting.
