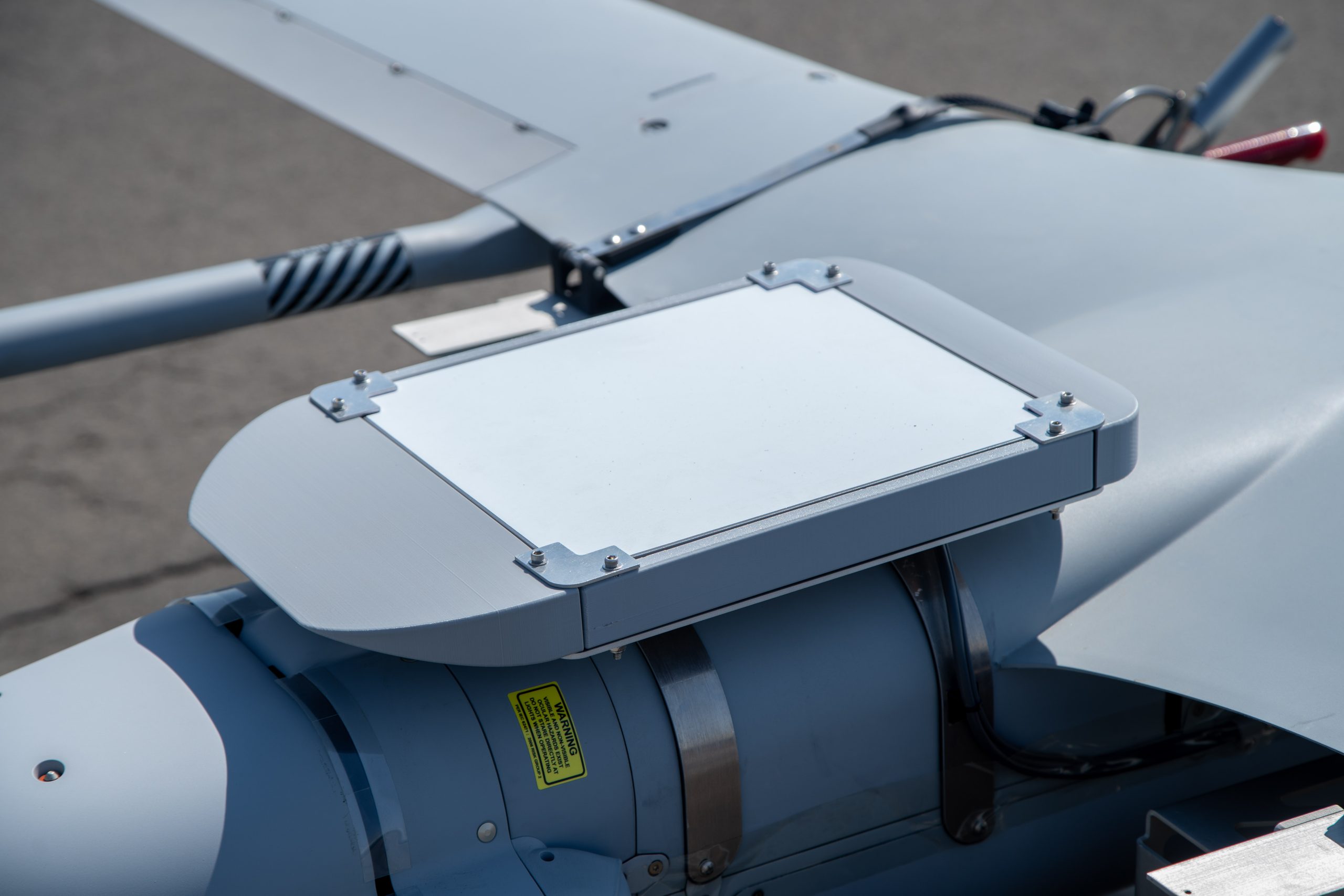

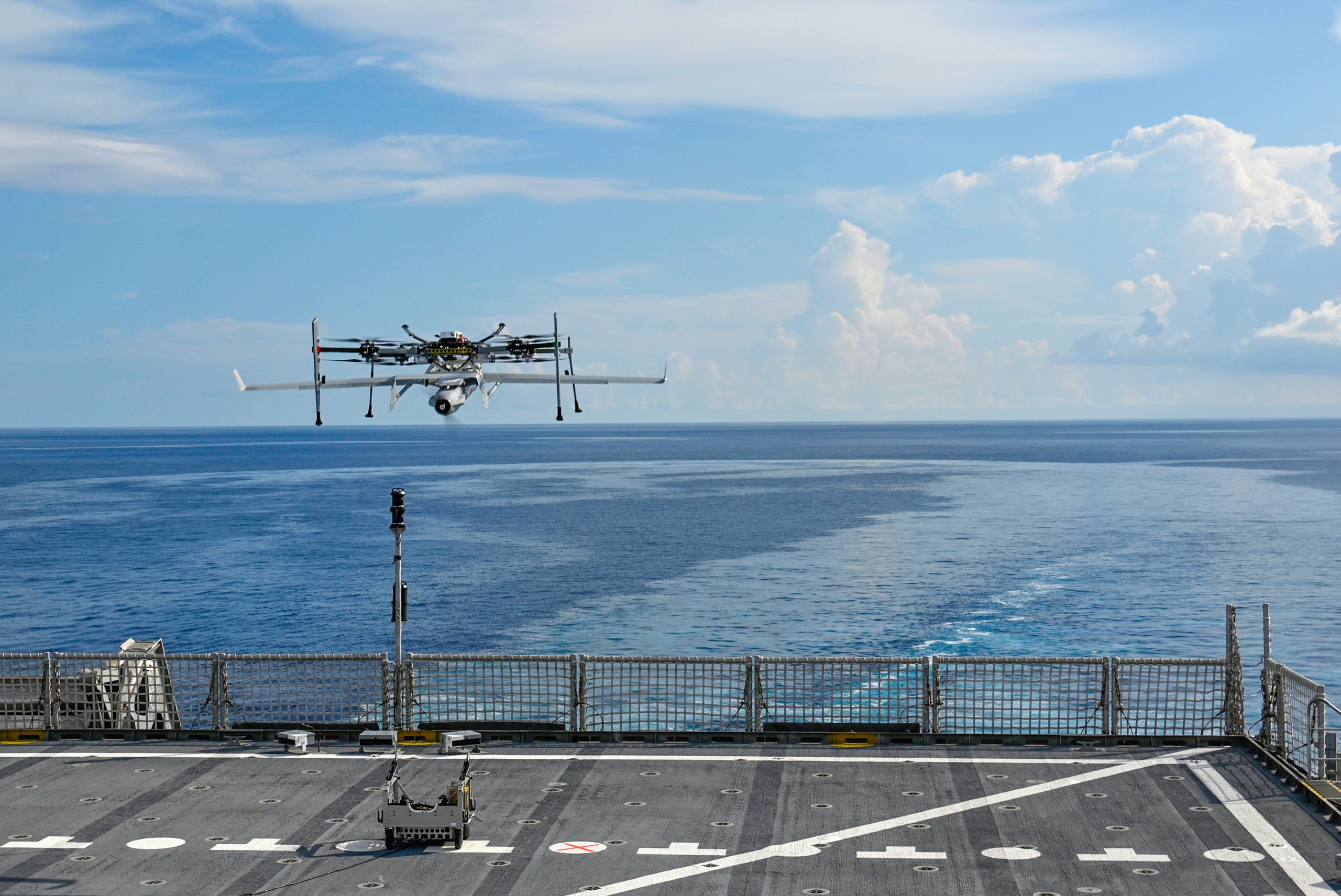

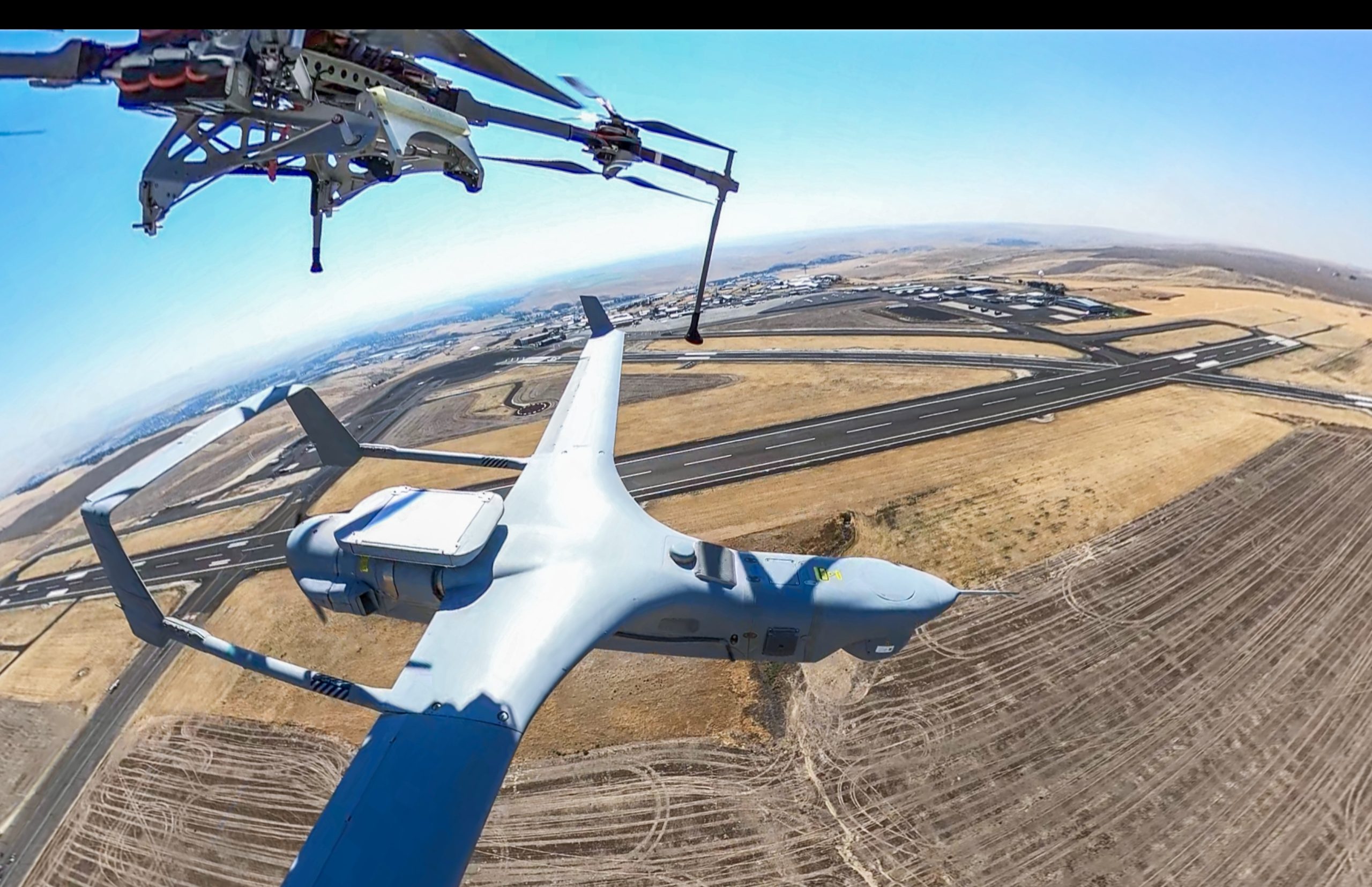

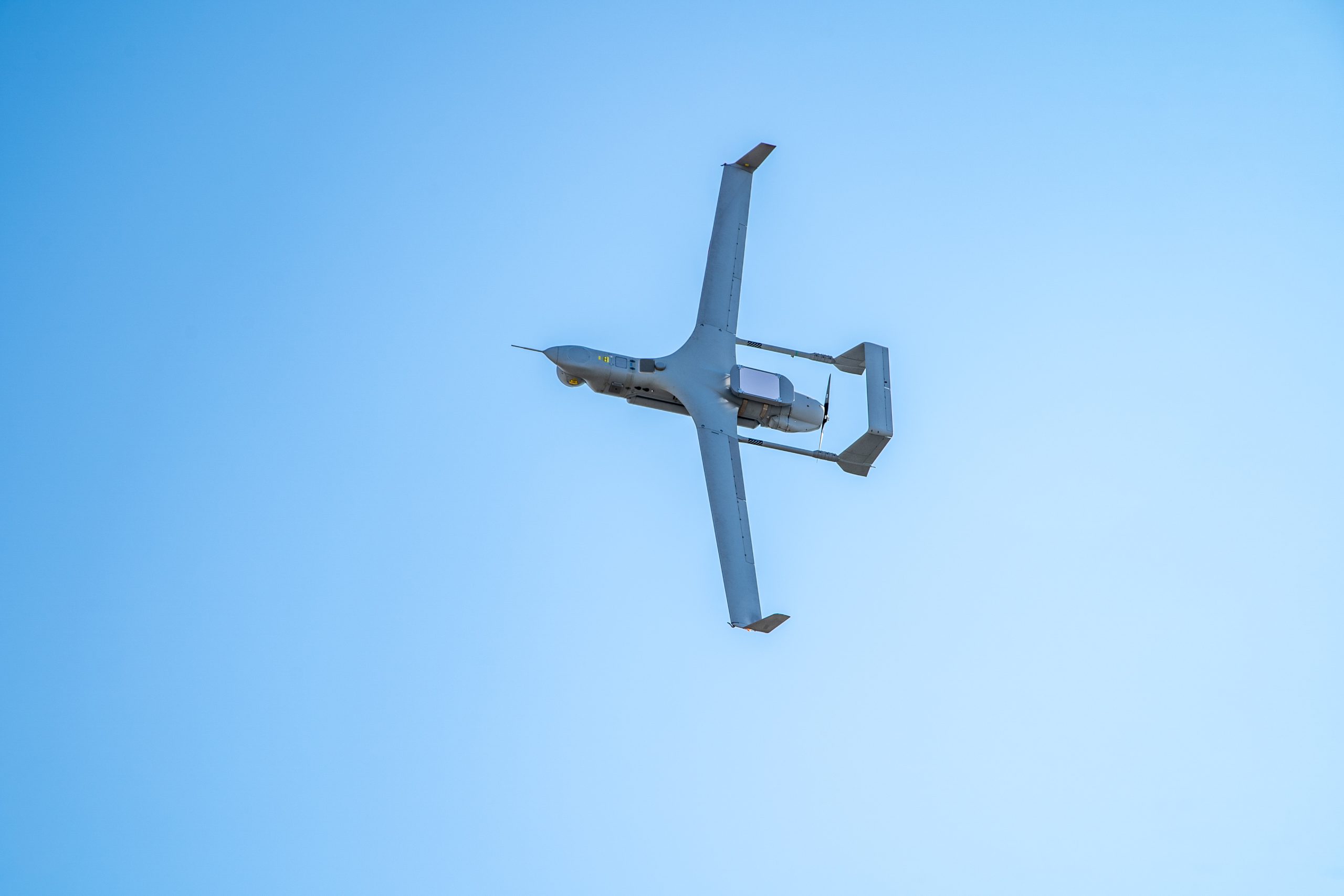

Integrator Extended Range Integrator Extended Range Expanded capability, ultimate flexibility Integrator with satellite-enabled beyond line of sight (SatCom BLOS) control extends range up to 2,000 nmi (point-to-point), increasing safety, value, and effectiveness. Multiple SatCom options available including Proliferated Low-Earth Orbit (PLEO) and Geosynchronous Orbit (GEO) constellation control. Also available with VTOL kit. Unmatched Endurance Fly over the hill and across the ocean to access previously unreachable targets by eliminating line-of-sight restrictions Group 4/5 Capabilities Fly multi-int, multi-domain missions that challenge Group 4/5 asset capabilities at a fraction of the acquisition and operation costs with 27.5-hour endurance, 2000 nmi range, and 50lb of payloads across 10 bays Safer Operations Keep operators and deployed personnel at safer distances from dangerous environments Get the full specs and details. DOWNLOAD PRODUCT CARD Specifications SATCOM C2 Options Proliferated Low-Earth Orbit (PLEO) constellations Medium-Earth Orbit (MEO) Geosynchronous Orbit (GEO) Size and Weight Length: 8.2 ft / 2.5 m Wingspan: 15.7 ft / 4.8 m Max takeoff weight: 175 lb / 79 kg Payload Capacity: Up to 50lb / 23 kg Performance Endurance: Up to 27.5 hours Ceiling: 20,000 ft / 6,096 m Max horizontal speed: 90+ knots / 46 m/s Cruise speed: 55 knots / 28 m/s Engine: High-efficient EFI using JP-5/Jp-8 (heavy) fuel Sensors and Payload Options AC14 EO telescope (high-zoom day FMV) Dual Imager (MWIR/EO – day & night FMV) PT-6 AI-assisted maritime surface search NSP-5 SAR/MTI/CCD multi-int tactical radar WAMI Wide-area motion imagery for day (Redkite) and night (Blackkite) EOIR-5/Alticam 14 Laser designator/pointer/rangefinder Alternative Navigation (Alt-Nav) SIGINT, EW, comms relay, and more Kinetics Rapid integration of other customer-specific payloads available On-board connectivity: Ethernet Range Theater-Relevant Ranges Achieves a range up to 2,000 nmi (point-to-point), long enough to fly from Guam to Okinawa. Up to 13 hours time on station at 500 nmi. Ideal for dispersed island chains, complex coastlines, vast areas of open ocean, and similar CONOPS. Expanded Target Set The field-swappable SatCom mission kit maximizes the full potential of Integrator’s endurance capability while expanding end user access to previously unreachable targets from geographically dispersed bases. Centralize control over assets launched anywhere in the world (including expeditionary positions via the optional VTOL kit). PLEO also allows control by advance forces in the field. Advanced SatCom Options Multiple SatCom control options including GEO, MEO, and Proliferated Low-Earth Orbit (PLEO) constellations offer ultimate flexibility and choice of control. Secure and Reliable Utilizes the latest global constellations of high throughput satellites and advanced onboard technology to achieve stable and high data rates with commercial and certified encryption options. Multi-Mission Flexibility Integrator’s suite of modular mission payloads (50lb across up to 10 bays) can now extend over the horizon to deliver persistent, high-resolution imagery, SIGINT, and electronic warfare capabilities for broad operational and strategic effects. Modular payloads are rapidly reconfigurable in austere environments. Fewer Bases, Reduced Footprint Reduce downrange footprint and centralize control of dispersed assets. No-sacrifice VTOL kit preserves endurance, range, and payload and power capacity. Expeditionary VTOL transportable downrange to enable island-hopping and ship-to-shore operations Unparalleled ISR for Group 3 UAS Integrator Extended Range delivers more affordable theater-level ISR on par with current Group 4 or 5 capabilities — with all the benefits and cost of a Group 3 UAS. Ready to learn more? CONTACT OUR TEAM Related Systems Operate Integrator Extended Range with these Insitu Systems. Integrator VTOL Battle-Tested, Now With VTOL… Learn More NSP-5 Multi-INT, all-weather ISR capabilities normally found on larger platforms Learn More Common Ground Control Station (cGCS) Common Ground Control System is small, modular, expeditionary, and offers true C2 on-the-move. Learn More Alticam 14 Multi-Imager, Multi-Feed turret with MWIR, SWIR and EO Learn More WAMI Wide-Area Motion Imagery (WAMI) for Integrator Learn More PT-6 Search, interrogate, and prosecute from one long endurance platform via state-of-the-art, automated wide-area search with high-powered zoom optics, across multiple spectral bands. Learn More In the News Related Stories Insitu Announces Proliferated-Low Earth Orbit Satellite Control for Integrator UAS with 2,000 Nautical Mile Range This capability enables Integrator to fly up to 2,000 Nautical Miles (NM) point-to-point with 27.5 hours of endurance, the longest range/endurance of any small UAS in its class. Read More » Insitu’s keys for success in serving NATO Europe Insitu Incorporated, a Boeing company, reached a milestone this year: 30 years of unmanned aircraft innovation excellence – and nearly 20 years of supporting NATO, helping it to project NATO power on land and at sea from the air. ESD’s Curtis Hand spoke with Insitu CEO Diane Rose about what is next for the company in terms of current and future operational theatres, warfare’s evolution, and new industrial partnerships and strategic alliances – all to strengthen NATO and its affiliates. Read More » Insitu Launches UAS Center of Excellence in the UAE, Strengthening Bilateral Ties The state-of-the-art facility will localize UAS Maintenance, Repair, and Overhaul (MRO), training, and other essential services for the UAE Armed Forces. Read More »
